Generate login Icon

How to Generate Icon for Login

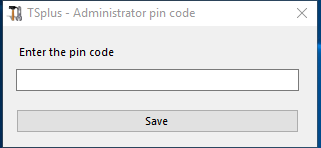

      Open TSPlus  (There is a common password to open the software) [ 0135790 ]

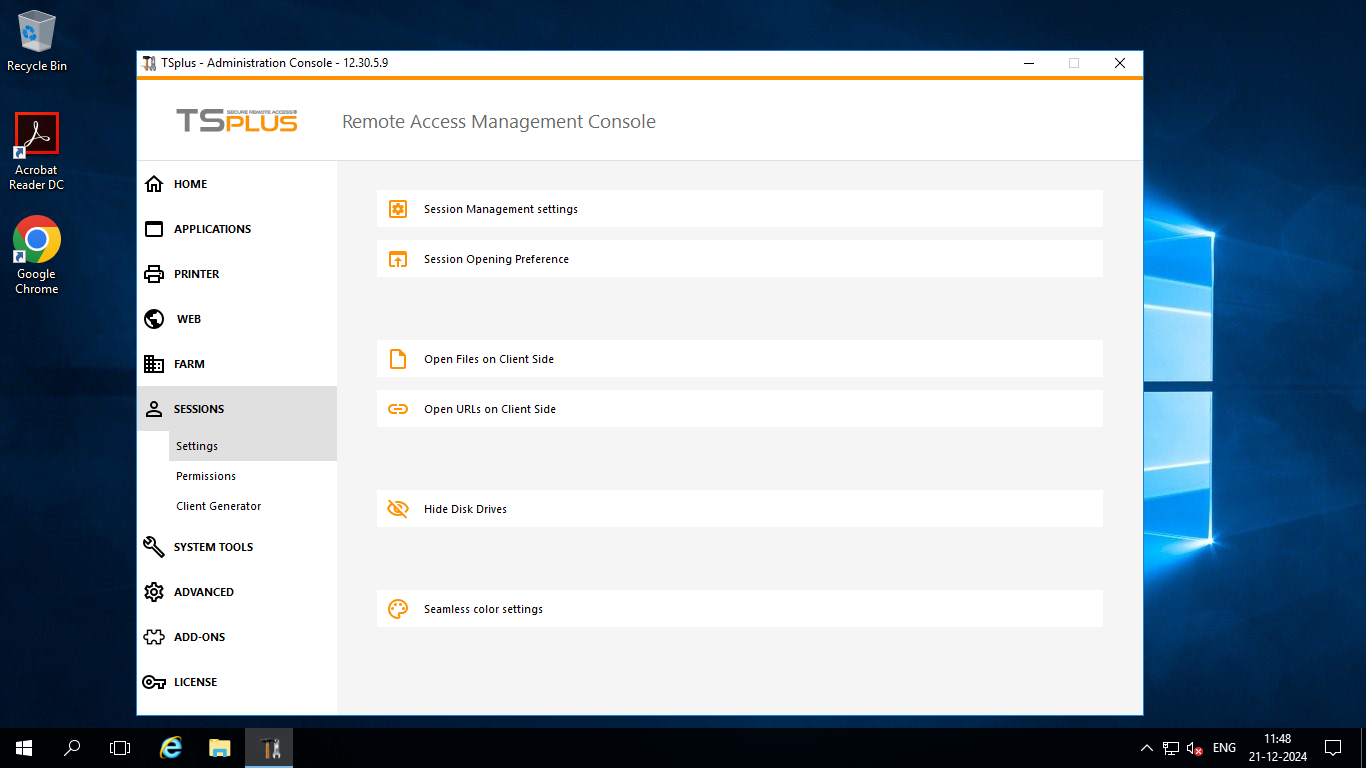

Then go to Sessions

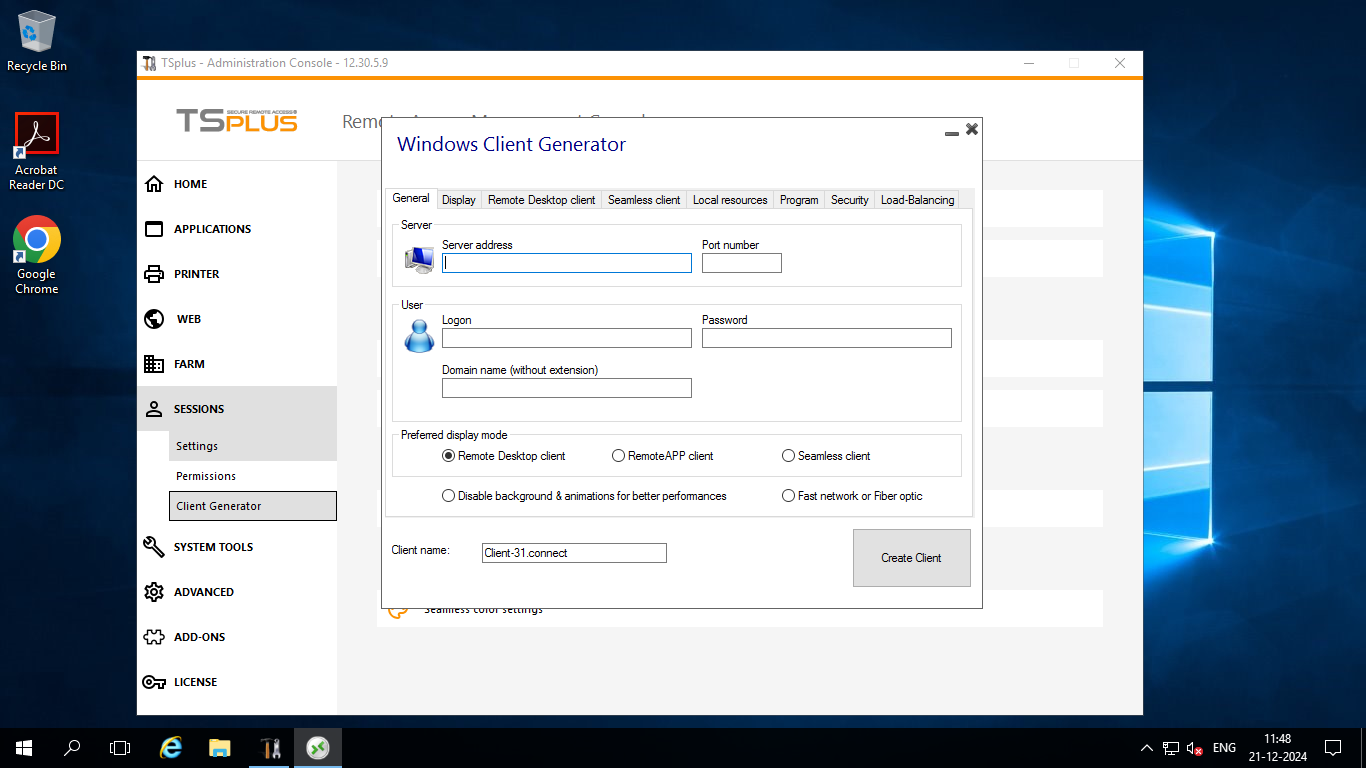

                                    and Client Generator





In General

                  Give Server Address or Domain name then give the Port

                  Preferred display mode select

                                                                     Remote Desktop Client

                                                                     Disable Background & Animations for better performances



In Display

                 Select Tab on Client or Enable shortcut Keys   (only one option will available on Display section select as per the Instruction)

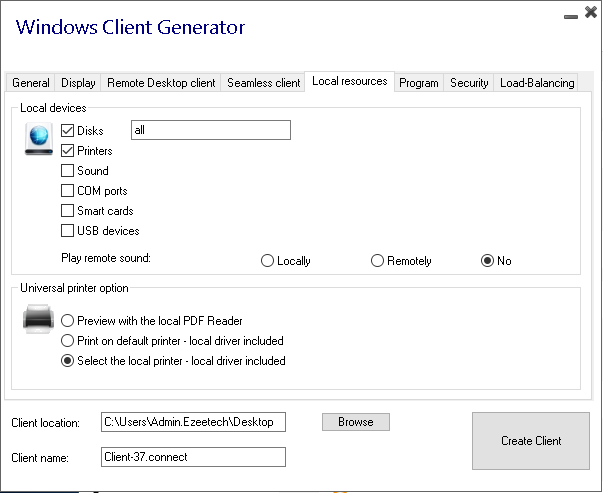

In Local Resources

                              Select in local devices

                                                                  Disks

                                                                  Printers

                              In Universal printer option

                                    Select the local printer - local driver included

                              Select the location where you want to save the Icon & give the Client Name then click on Create Client



After that provide the Icon to the Client and also provide the Icon view Setup (find the link below)

                  https://drive.google.com/file/d/15HOa1-KdWbv_oHwWGpYgnFjjHibiPVaq/view?usp=drive_link

Install the Icon view setup after that Icon will be visible.
